Ford Flathead 239ci v8 new Sealed power Pistonset 030'' over (ex pistonrings)
€ 345,00

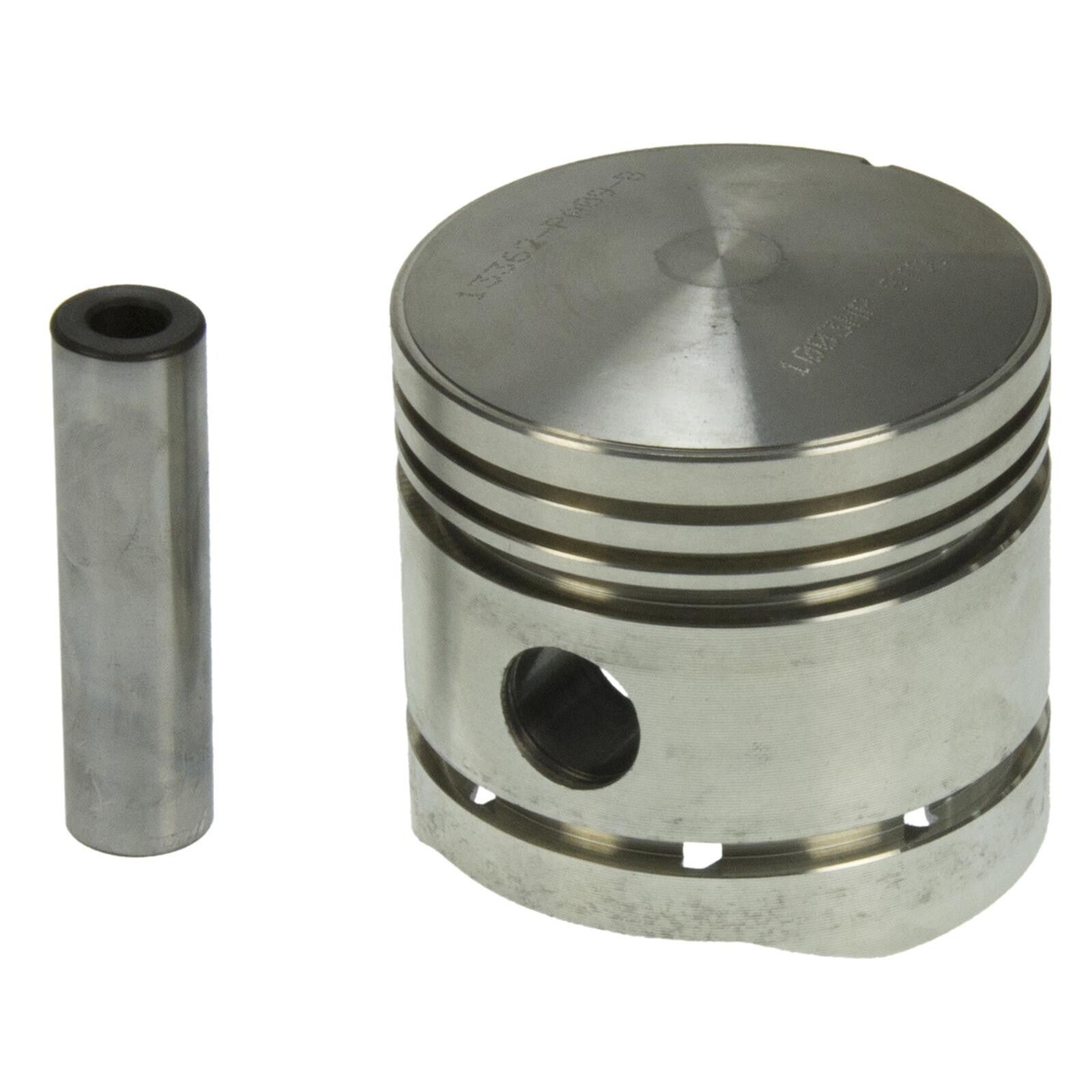

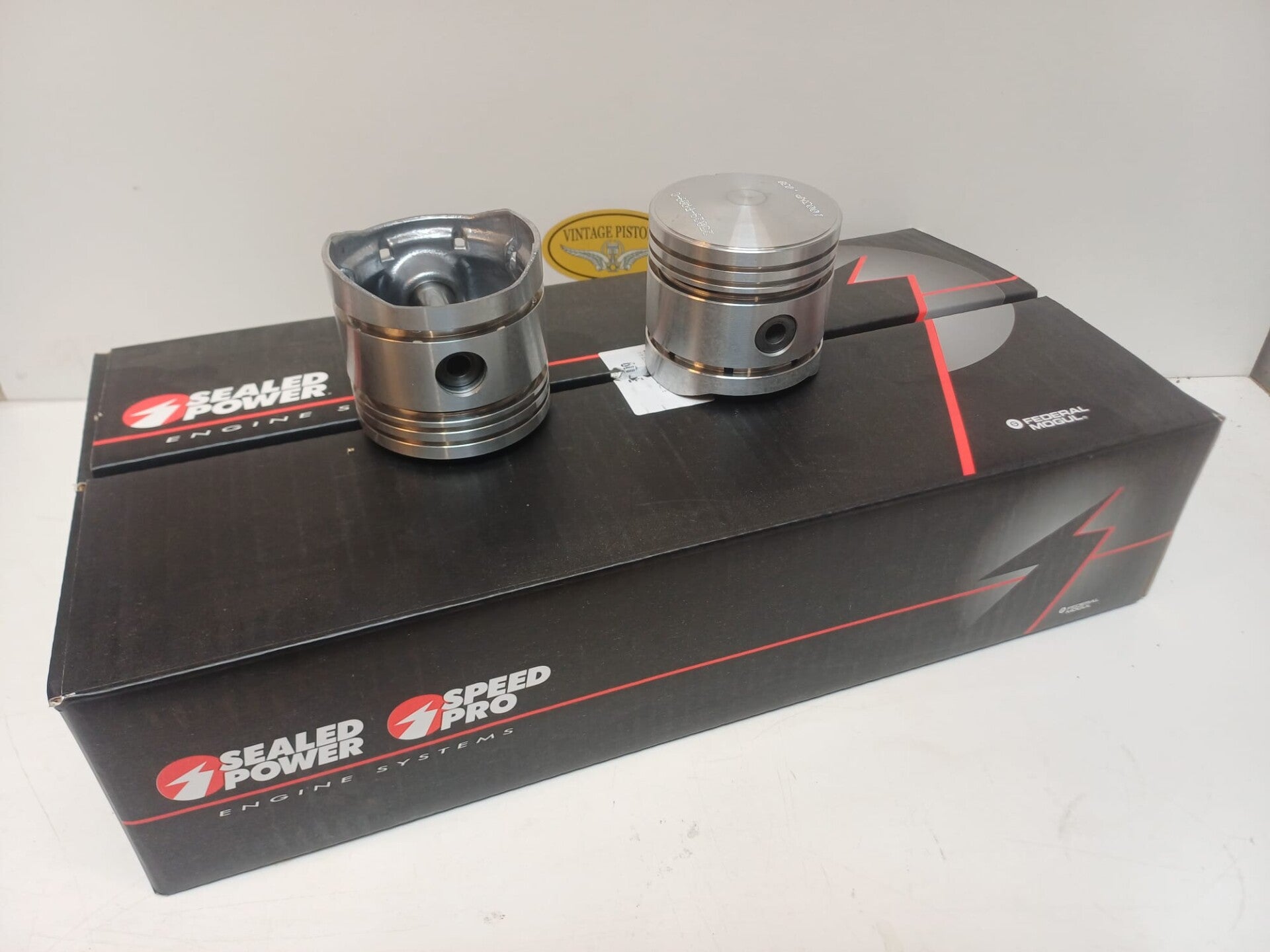

Ford Flathead 239ci v8 new Pistonset (Sealed power) concave top complete with pins and clips.
This item is for eight (8) STANDARD bore Sealed Power cast aluminum pistons for 1939-1953 Ford 239ci Flathead V-8 engines. P/N (8) 1003NP-030.
Complete set of:8
Bore: 3 3/16"
Info: Ford 239ci ,concave top, 8ba , 59a , 24bolt
- Bore: 3.1875 in. (at standard bore)
- Stroke: 3.750 in. (stock)
- Connecting Rod Length: 7.000 in. (stock); rods NOT included
- Piston Material: Cast aluminum
- Piston Top Style: Dome with no valve reliefs with ring below pin
- Compression Height: 1.519 in. plus .210 in. crown
- Wrist Pin Diameter: .750 in.; pins included
- Wrist Pin Style: Floating; pin clips included
- Ring Land Thickness: 3/32-3/32-3/16-3/16; rings not included!
- Notes: Not factory duplicate; Repl. O.E. number 8BA-6108D, 95-100 HP engines
Choose oversize below:
If the oversize option is not available in the webshop, please let us know so we can order the desired size.
